AEC 電纜防水熱縮封帽
  • 應用
    封帽內塗有螺旋狀的熱熔膠，提供了優異的防潮，防菌，防侵蝕的能力。
    建議使用於高空或者地下的電力分支PVC, lead or XLPE電纜。
    Designed with a layer of spiral coated hot melt adhesive in the internal surface of the end cap, which provides highly resistant to moisture, fungus, and corrosion, and recommended for use both in open air and on underground power distribution cables with PVC, lead or XLPE sheaths.
  • 特性
    收縮率2:1
    電氣絕緣性能可達 1000V
    可以很方便地安裝到電纜終端上
    優異的抗磨損性能和機械保護性能
    可以選擇EVA熱熔膠塗布或充氣式電纜專用聚醯胺熱融膠塗布產品
    Shrinkable Ratio: 2:1
    Electrical insulation to 1000V
    Easy installation over the cable end
    Abrasion resistance and mechanical protection
    EVA hot melt adhesive or Polyamide hot-melt adhesive for pressurized cable can be employed for inner spiral coated adhesive.

  • 操作溫度範圍
    操作溫度 : -55˚C ~ 110˚C
    最低收縮溫度 : 80˚C
    最低完全收縮溫度 : 120˚C
    Operating temperature : -55˚C ~ 110˚C
    Minimum shrink temperature : 80˚C
    Minimum fully recovery temperature : 120˚C
  • 認證 / 規範
  • 顏色
    標準顏色：黑
    (需要汽嘴型封帽請另外詢價)
    Standard color ：black
    (End cap with valve is available on request.)

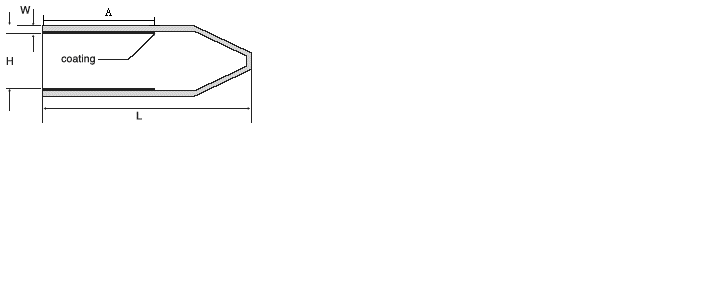

Part No.

產品型號

As supplied

(mm)收縮前

After recovered (mm) 收縮後

Cable diameter電纜直徑 (mm)

H(min)

L(±10％)

H(max)

A(min)

W(±10％)

Standard length 標準長度

AEC012

12

38

4.0

12

2.6

4-10

AEC014

14

45

5.0

15

2.2

5-12

AEC020

20

65

6.0

19

2.5

6-16

AEC025

25

75

8.5

23

2.5

10-20

AEC035

35

92

16.0

25

3.3

17-30

AEC040

40

95

15.0

25

3.3

18-32

AEC055

55

114

26.0

36

3.5

28-48

AEC075

75

132

36.0

40

4.2

45-68

AEC100

100

153

52.0

55

5.0

55-90

AEC120

120

155

60.0

55

5.0

65-110

AEC145

145

160

60.0

55

5.0

70-130

AEC160

160

160

82.0

55

4.5

90-150

AEC200

200

170

90.0

55

4.5

100-180

Extended length 加長型

AEC014L

14

66

5.0

23

2.2

5-12

AEC042L

42

110

15.0

25

3.3

18-34

AEC055L

55

150

23.0

55

3.8

25-48

AEC062L

62

150

23.0

55

3.8

25-55

AEC075L

75

170

32.0

55

4.0

40-68

AEC105L

105

162

45.0

55

4.0

50-90
