應用由聚烯烴和熱熔膠共擠製造而成，用於需要防水的電線電纜、配線和連接器的保護。可以很好地應用於電子元件和通信工業中。
Manufactured by co-extrusion of polyolefin and hot-melt adhesive. Especially recommended for water-proofing for cable and wire harnesses, and protection of connector-to-cable transitions. Typically applied in the insulation and sealing of electrical and electronic components and communication industry. -
特性收縮率:3:1 / 4:1
高的擴張倍率提供了優異的電線和連接器的密封
用於戶內電子應用的密封和保護
不需要移開連接器就可以方便的修補損壞的電纜內層
可選用EVA熱融膠或高溫溶點聚烯胺(PA)熱融膠
Shrinkage ratio：3:1 / 4:1
High expansion ratio to provide excellently sealing for connector-to-cable transitions
Environmentally seals and protects indoor electrical applications
Conveniently repair most damaged cable jackets without removing connectors
EVA hot melt adhesive or high melting PA adhesive are available
-
操作溫度範圍操作溫度： -45℃ ~ 110℃
最低收縮溫度： 80℃
最低完全收縮溫度：110℃
Operating temperature : -45℃ ~ 110℃
Minimum shrink temperature : 80℃
Minimum fully recovery temperature : 110℃
-
認證 / 規範
UL224 File no. E255532, 125℃ VW-1 600V
-
顏色標準顏色：黑色 (其他顏色，其他尺寸，裁切可依客戶需求另行訂制)
Standard color ：Black (Other colors ,special size, cut pieces are available on request.)
|

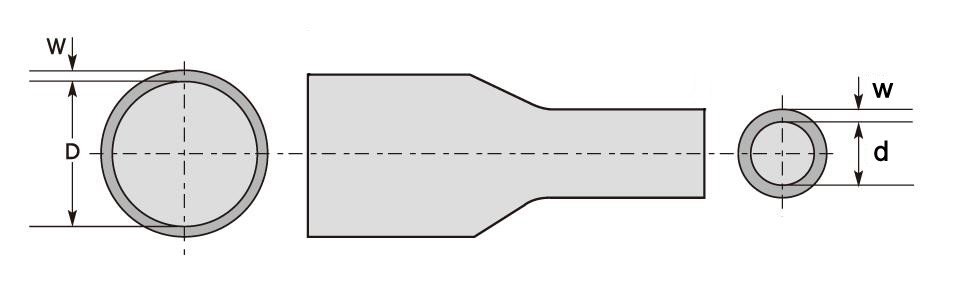

Part Number 產品型號 |
Nominal Size (尺寸) |
As supplied (mm) 收縮前(毫米) |
After recovered (mm) 收縮後(毫米) |
Standard Length (Meter) 標準長度(米) |
||||
|
mm 毫米 |
Inch 英吋 |
I.D(min) 內徑 |
W.T. (nominal)壁厚 |
I.D.(max) 內徑 |
W.T.壁厚 |
Adhesive thickness 膠厚度 |
||
|
AIS-3X 3:1 Shrinkage Ratio收縮率 |
||||||||
|
AIS3X0024 |
2.4 |
3/64 |
2.4 |
0.30 |
0.8 |
0.65±0.15 |
0.30±0.08 |
200 |
|
AIS3X0032 |
3.2 |
1/8 |
3.2 |
0.45 |
1.0 |
1.00±0.28 |
0.45±0.08 |
200 |
|
AIS3X0048 |
4.8 |
3/16 |
4.8 |
0.45 |
1.6 |
1.00±0.28 |
0.50±0.08 |
100 |
|
AIS3X0064 |
6.4 |
1/4 |
6.4 |
0.50 |
2.0 |
1.00±0.28 |
0.50±0.08 |
100 |
|
AIS3X0079 |
7.9 |
5/16 |
7.9 |
0.50 |
2.6 |
1.20±0.28 |
0.50±0.08 |
50 |
|
AIS3X0095 |
9.5 |
3/8 |
9.5 |
0.50 |
3.0 |
1.40±0.28 |
0.60±0.08 |
50 |
|
AIS3X0127 |
12.7 |
1/2 |
12.7 |
0.65 |
4.0 |
1.70±0.38 |
0.76±0.15 |
1.22 |
|
AIS3X0150 |
15.0 |
5/8 |
15.0 |
0.65 |
5.0 |
1.90±0.38 |
0.76±0.15 |
1.22 |
|
AIS3X0191 |
19.1 |
3/4 |
19.1 |
0.70 |
6.0 |
2.25±0.55 |
0.76±0.15 |
1.22 |
|
AIS3X0254 |
25.4 |
1 |
25.4 |
0.80 |
8.0 |
2.54±0.55 |
1.00±0.20 |
1.22 |
|
AIS3X0381 |
38.1 |
1 1/2 |
38.1 |
0.80 |
13.0 |
2.54±0.55 |
1.00±0.20 |
1.22 |
|
AIS-4X Shrinkage Ratio 4:1收縮率 |
||||||||
|
AIS4X0040 |
4 |
3/16 |
4.0 |
0.40 |
1.0 |
1.00±0.28 |
0.50±0.08 |
1.22 |
|
AIS4X0080 |
8 |
5/16 |
8.0 |
0.45 |
2.0 |
1.00±0.28 |
0.50±0.08 |
1.22 |
|
AIS4X0120 |
12 |
1/2 |
12.0 |
0.45 |
3.0 |
1.40±0.28 |
0.60±0.10 |
1.22 |
|
AIS4X0160 |
16 |
5/8 |
16.0 |
0.55 |
4.0 |
1.70±0.38 |
0.76±0.15 |
1.22 |
|
AIS4X0240 |
24 |
1 |
24.0 |
0.70 |
6.0 |
2.25±0.55 |
0.76±0.15 |
1.22 |
|
AIS4X0320 |
32 |
1 1/4 |
32.0 |
0.70 |
8.0 |
2.54±0.55 |
1.00±0.20 |
1.22 |
|
AIS4X0500 |
50 |
2 |
50.0 |
0.70 |
13.0 |
2.54±0.55 |
1.00±0.20 |
1.22 |
